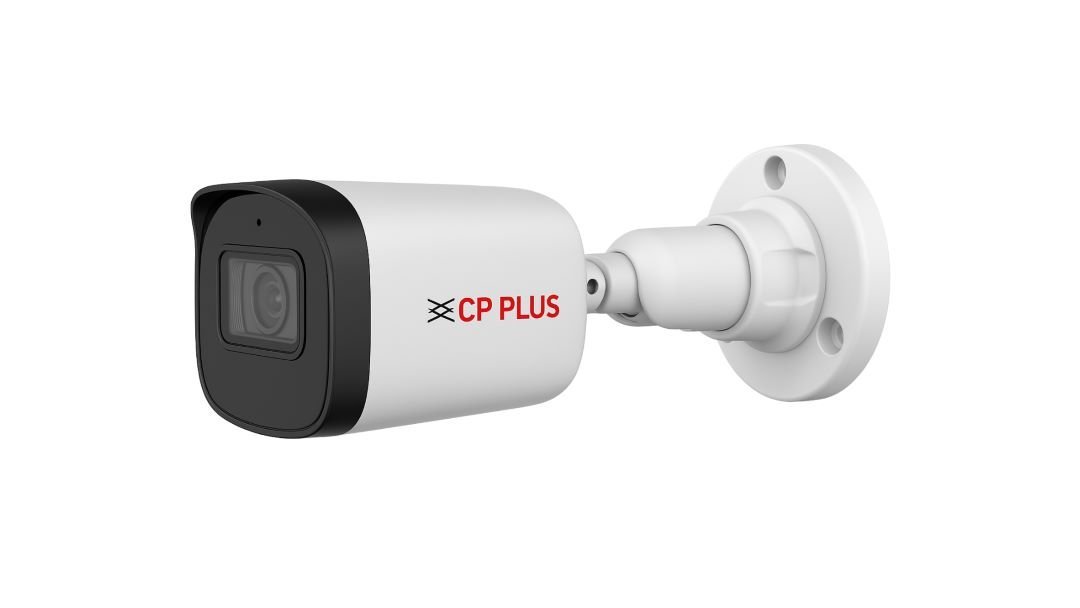

2.4MP IR Bullet Camera (CP-URC-TC24PL3)

Description: Within 48 hours Installation Available Free Delivery on Complete Camera Sets 1-Year Onsite Service Support 1-Year Product Warranty 10-Day Replacement Guarantee Easy Return & Replacement Policy We also offer a wide range of CCTV cameras including: Bullet Camera and Dome Cameras Night Vision & Wireless Models DVR/NVR Solutions Ensure your property is secure with trusted professionals.�� Call us today for a free quote and consultation. Specification Details Image Sensor 2.4MP PS CMOS Image Sensor Max. Resolution 1920 (H) × 1080 (V) Minimum Illumination 0.02 [email protected] (Color, 30 IRE), 0.002 [email protected] (B/W, 30 IRE), 0 lux (IR on) Shutter Speed PAL: 1/25 s–1/100,000 s ; NTSC: 1/30 s–1/100,000 s Lens 3.6 mm (2.8 mm and 6 mm optional) Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Lens Type Fixed-focal Lens Mount M12 Max. Aperture F2.0 Angle of View 3.6 mm: H: 80°, V: 43°, D: 94° 2.8 mm: H: 100°, V: 54°, D: 117° 6 mm: H: 43°, V: 24° Close Focus Distance 3.6 mm: 0.8 m ; 2.8 mm: 0.5 m ; 6 mm: 2.4 m DORI Distance 3.6 mm: 55.0 m (Detect), 22.0 m (Observe), 11.0 m (Recognize), 5.5 m (Identify) 2.8 mm: 44.7 m (Detect), 17.9 m (Observe), 8.9 m (Recognize), 4.5 m (Identify) 6 mm: 102.9 m (Detect), 41.1 m (Observe), 20.6 m (Recognize), 10.3 m (Identify) Back Light Compensation BLC / DWDR Iris Control Fixed White Balance Auto Video Output CVI/TVI/AHD/CVBS via one BNC port Noise Reduction 2D DNR Gain Control (AGC) Auto Day/Night Auto (ICR) / Color / B/W Resolution 1080p (1920 × 1080), 960H (960 × 576 / 960 × 480) Frame Rate CVI: PAL: 1080p@25 fps ; NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps ; NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps ; NTSC: 1080p@30 fps CVBS: PAL: 960H ; NTSC: 960H IR Mode Smart IR IR IR Range of 30 m IR Control Auto Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F) Operating Humidity <95% RH, non-condensing Storage Temperature -40°C ~ 60°C (-40°F ~ 140°F) Storage Humidity <95% RH, non-condensing Power Source 12V DC ±30% Power Consumption Max. 2.8 W (12 VDC, IR on) Dimension 146.1 mm × 70.0 mm × 69.8 mm Weight 0.15 kg About This Item 2.4MP IR BULLET SECURITY CAMERA – 2.4MP CMOS sensor delivers crisp Full HD (1920×1080) at 25/30fps through a 3.6mm fixed lens (2.8mm & 6mm optional) — flexible coverage for any outdoor CCTV installation angle. 30-METER SMART IR NIGHT VISION – Infrared LEDs with Smart IR auto-adjustment provide powerful 30-meter night vision without overexposure, ensuring consistently clear footage in complete darkness. IP67 WEATHERPROOF CONSTRUCTION – Premium IP67-rated bullet housing provides complete protection against dust and water ingress — built to last through harsh Indian weather for uninterrupted outdoor security. OSD MENU CONTROL OVER COAXIAL CABLE – Convenient on-screen display (OSD) menu allows full camera configuration through the coaxial cable itself — eliminating the need for on-site manual adjustments after installation. 4-IN-1 SWITCHABLE SIGNAL OUTPUT (CVI/CVBS/AHD/TVI) – Single BNC port supports all four major analog video formats, making this one of the most compatible wired CCTV cameras for existing surveillance systems. DWDR 2D DNR AWB AGC BLC ICR – Full image processing stack delivers sharp, balanced video from bright daylight to near-total darkness — ideal for outdoor perimeters, driveways, and entry points. Frequently Asked Questions (FAQs) 1. What resolution does this camera provide? The camera delivers 2.4MP Full HD (1920×1080) video for clear and detailed surveillance footage. 2. How far can the camera see at night? Its 30-meter Smart IR night vision provides clear visibility in complete darkness while preventing image overexposure. 3. Is this camera suitable for outdoor installation? Yes, the IP67 weatherproof housing protects against dust, rain, and harsh weather conditions for reliable outdoor use. 4. Can I adjust camera settings remotely? Yes, the camera supports OSD menu control over the coaxial cable, allowing convenient configuration through a compatible DVR. 5. Which DVR formats are compatible with this camera? The camera supports CVI, CVBS, AHD, and TVI formats, making it compatible with most existing surveillance systems. 6. What lens options are available? The camera comes with a 3.6mm fixed lens, with 2.8mm and 6mm lens options available for different surveillance requirements. 7. Is this camera suitable for installations across Bihar? Yes, it is ideal for homes, offices, shops, warehouses, and commercial properties across Patna, Tirhut, Magadh, Munger, Bhagalpur, Purnea, Kosi, Saran, and Darbhanga Divisions. 8. Where is this camera best installed? This camera is perfect for driveways, building entrances, boundary walls, parking areas, warehouses, and outdoor perimeters, where long-range monitoring and reliable night vision are essential.
